Triple layer Forming Fabrics For Specialty Papers

Name: Triple layer Forming Fabrics For Specialty Papers
Brand: ATMC
Price: 1 USD

Price : inquiry

Supply Ability : Purchase supply

Caliper (mm) Critical : 0.580

Break Strength : ≥900 N/cm

Structure : SSB Triple Layer

Fabric Color : Light Green, Light Blue

Brand Name : ATMC

MOQ : 1 pcs

Packaging Details : Standard export ply-wood case

Payment Terms : L/C，T/T

Pattern description : 2/5 Shed

Basis Weight (g/m²) : 505

CMD Yarns Top : 0.13mm 50.6 /cm PET/PA

Air Permeability : 300 CFM @ 125 Pa

Void Volume : 455ml/m² (54.5%)

Caliper (mm) New : 0.835

Fiber Support Index : 186

Paper Side Open Area : 26.1%

CMD Yarns Bottom : 0.27mm 25.3 /cm PET/PA

Fiber Support Point : 1292 /cm²

Drainage Index : 29.0

MD Yarns Top : 0.13mm 39.0 /cm PET

MD Yarns Bottom : 0.21mm 39.0 /cm PET

Elongation(50N/cm) : ≤0.45%

Contact Now

The SUPER SSB64205Y is an super fine two over five shaft shute binding SSB triple layer with a 2:1 cross direction (CD) yarn ratio. The two-shaft paper side has paired CD binding yarns providing both extra support and binding the two independent layers together. The very high sheet support on the forming surface promotes excellent smoothness, formation, increased retention and minimal wire mark. High MD and CD stiffness for good wear potential and dimensional stability.

· Seam Type: Joined Endless

· Width: Up to 10.5 M

· Applications: Specialty Papers

Triple layer Forming Fabrics For Specialty Papers

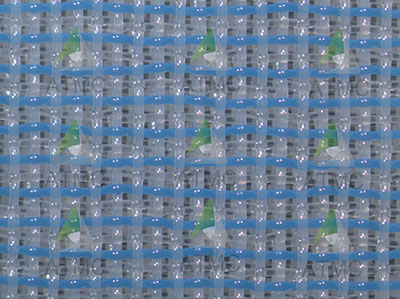

Paper Side Wear Side
